QuickIO Blink Example
/*
QuickIO_Blink.ino
Created by Baltimore Hackerspace 11/26/2016

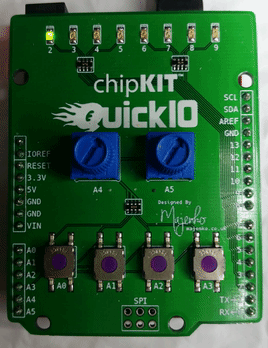

This is a simple sketch tutorial to demonstrate how to blink the LEDs on the QuickIO Shield. This sketch turns
each LED on for a half second and then off. Then the next LED is lit in sequential order. This sketch makes use of
a for loop for both the setup of the pins and also for the sequencing of the leds. A variable (i) is
initialized with the first LED pin number (2) and incremented until the loop reaches the last pin (9).
QuickIO Pins:
Green LEDs: 2 - 5
Yellow LEDs: 6-7
Red LEDs 8-9
*/
// the setup function runs one time when you press reset or power the board
void setup() {
for (int i=2; i<=9; i++){ // loop from pin 2 to 9
pinMode(i, OUTPUT); // initialize all LEDs as digital outputs.
digitalWrite(i, LOW); // initialize all levels to LOW
}
}
// the loop function runs forever
void loop() {
for (int i=2; i<=9; i++){ // loop from pin 2 to 9
digitalWrite(i, HIGH); // i is a variable for the current pin, HIGH is the logic level.
delay(500); // wait for a 500 milliseconds
digitalWrite(i, LOW); // turn off the current LED by making the logic level LOW
}
}
