ChipKIT uC32

chipKIT uC32
Specifications
Controller PIC32MX340F512H
Flash 512kB
RAM 32kB
Speed 80MHz
Information
Board Define _BOARD_UC32_
Links
Designer Digilent Inc.
Product Page digilentinc.com
User Guide chipkit_uc32:chipkit_uc32_rm.pdf
Schematic chipkit_uc32_sch.pdf
Tech Support chipkit.net/forum
Board Files Eagle (ZIP)
Bootloader HEX Bootloader Image (ZIP)
Purchase From Microchip

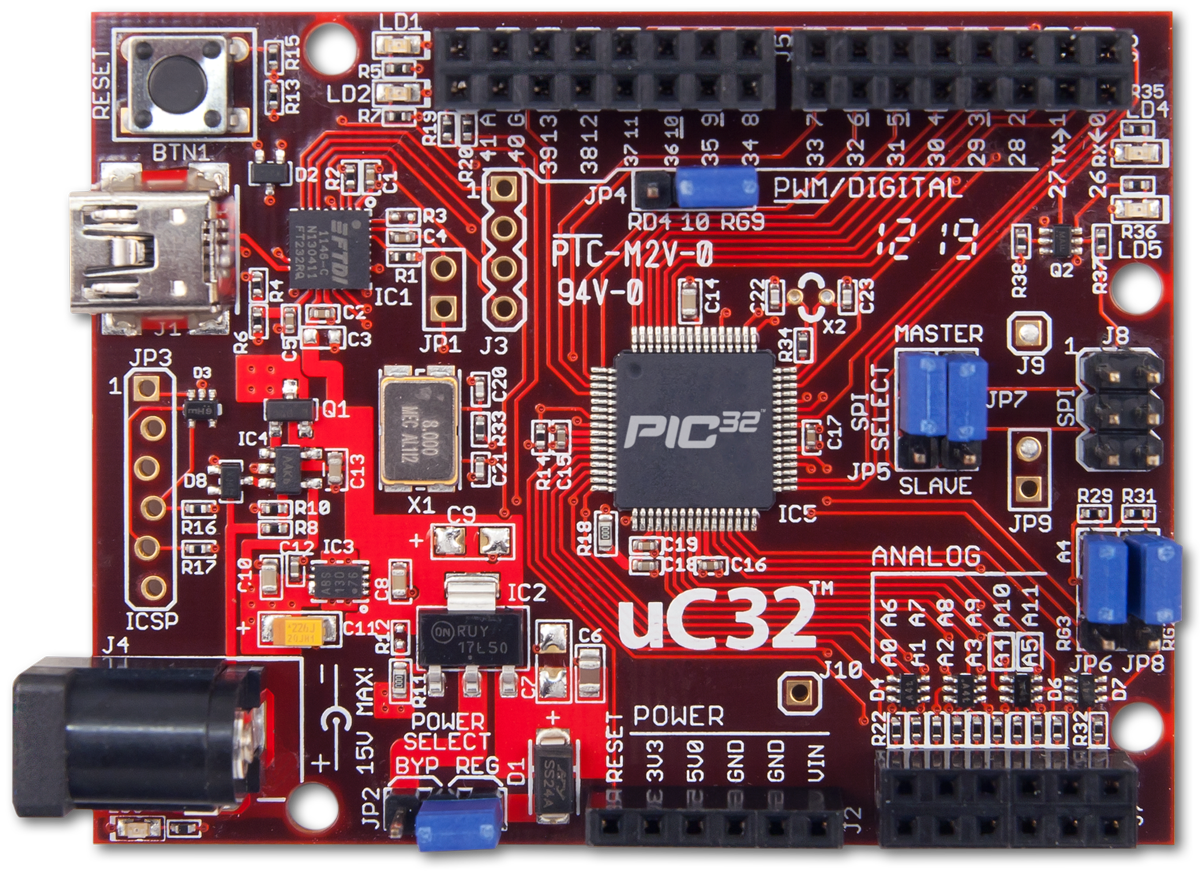

The chipKIT™ uC32 development board is an Arduino-style platform for developing microcontroller-based applications. It uses the chipKIT-core™ and Arduino IDE, for compatibility with existing code examples, tutorials and resources. chipKIT™ uC32 is also pin-compatible with many Arduino shields that can operate at 3.3V.

  1. The Board Design

    1. Useful Board Pins

      1. LEDs

      2. Analog Inputs

      3. Serial Objects

      4. I2C

      5. SPI

  2. Pinout Table

The Board Design

  • Microchip PIC32MX340F512H microcontroller, which includes 512KB Flash and 32K RAM
  • Up to 80 MHz operating speed
  • 47 available I/O lines
  • USB or externall powered
  • USB cable required for programming (not included)
  • Two SPI and two I2C
  • 16 channel 10-bit ADC, five PWM outputs
  • 3.3V operating voltage
  • 12 analog inputs
  • 7V to 15V input voltage
  • +/-18mA DC current per pin
  • 75mA typical operating current
  • Compatible with the advanced MPLAB IDE and the PICkit 3 in-system programmer/debugger

Useful Board Pins

LEDs

LED Name Description
LD1 USB TX Activity LED
LD2 USB RX Activity LED
LD3 3.3V Power Indicator
LD4 Digital pin 13
LD5 Digital pin 43

Analog Inputs

Analog Input Digital Pin
A0 14
A1 15
A2 16
A3 17
A4 18
A5 19
A6 20
A7 21
A8 22
A9 23
A10 24
A11 25

Serial Objects

Serial Object UART TX Pin RX Pin
Serial USB/UART1 1 0
Serial1 UART2 40 39

I2C

I2C SCK pin is Digial 46, and SDA is Digital 45.

The pins are shared with analong pins A4 and A5 and must be selected using jumpers JP6 and JP8. For JP6 and JP8: Short Pins 1&2 for Analog input mode adn Pins 2&3 for I2C mode.

SPI

SPI SS is Digital 10, MOSI is Digital 11, MISO is Digital 12, CLK is Digital 13.

Jumpers JP5 and JP7 are used to select whether the uC32 operates as a Master (transmit on MOSI, receive on MISO) or a Slave (transmit on MISO, receive on MOSI) device.

Pinout Table

Quick reference: There are two user LEDs (Pin 11, Pin 43), and 12 analog inputs (Pin 14 - Pin 25, A0 - A11). All 47 are usable as GPIO, however some may be in use when used with the Arduino platform.

chipKIT Pin # Connector Pin # PIC32 Pin # PIC32 Signal Notes
0 J6-01 34 U1RX/SDI1/RF2
1 J6-03 33 U1TX/SDO1/RF3
2 J6-05 42 IC1/RTCC/INT1/RD8
3 J6-07 46 OC1/RD0
4 J6-09 59 RF1
5 J6-11 49 OC2/RD1
6 J6-13 50 OC3/RD2
7 J6-15 43 IC2/U1CTS/INT2/RD9
8 J5-01 44 IC3/PMCS2/PMA15/INT3/RD10
9 J5-03 51 OC4/RD3
10 J5-05 52 PMWR/OC5/IC5/CN13/RD4 Selected by JP4, also on J8-6
11 J5-07 6 SDO2/PMA3/CN10/RG8 Selected by JP5, also on J8-1
12 J5-09 5 SDI2/PMA5/CN8/RG7 Selected by JP7, also on J8-4
13 J5-11 4 SCK2/PMA5/CN8/RG6 Also on J8-3, User LED LD4
14/A0 J7-01 14 C2IN-/AN2/SS1/CN4/RB2
15/A1 J7-03 12 C1IN-/AN4/CN6/RB4
16/A2 J7-05 21 U2CTS/C1OUT/AN8/RB8
17/A3 J7-07 23 TMS/CVREFOUT/PMA13/AN10/RB10
18/A4 J7-09 27 TCK/PMA11/AN12/RB12 Selected by JP6
19/A5 J7-11 29 PMALH/PMA1/U2RTS/AN14/RB14 Selected by JP8
20/A6 J7-02 13 C2IN+/AN3/CN5/RB3
21/A7 J7-03 11 C1IN+/AN5/CN7/RB5
22/A8 J7-06 22 PMA7/C2OUT/AN9/RB9
23/A9 J7-08 24 TDO/PMA12/AN11/RB11
24/A10 J7-10 28 TDI/PMA10/AN13/RB13
25/A11 J7-12 30 PMALL/PMA0/AN15/OCFB/CN12/RB15
26 J6-02 60 PMD0/RE0
27 J6-04 61 PMD1/RE1
28 J6-06 62 PMD2/RE2
29 J6-08 63 PMD3/RE3
30 J6-10 64 PMD4/RE4
31 J6-12 1 PMD5/RE5
32 J6-14 2 PMD6/RE6
33 J6-16 3 PMD7/RE7
34 J5-02 53 PMRD/CN14/RD5
35 J5-04 45 IC4/PMCS1/PMA14/INT4/RD11
36 J5-06 54 CN15/RD6
37 J5-08 55 CN16/RD7
38 J5-10 35 U1RTS/BCLK1/SCK1/INT0/RF6
39 J5-12 31 PMA9/U2RX/SDA2/CN17/RF4
40 J5-14 32 PMA8/U2TX/SCL2/CN18/RF5
41 J5-16 15 PGC1/AN1/VREF-/CVREF-/CN3/RB1
42 J5-15 16 PGED1/PMA6/AN0/VREF+/CVREF+/CN2/RB0
43 N/A 58 RF0 User LED LD5
44 J5-05 8 PMA2/SS2/CN11/RG9 Selected by JP4, also on J8-6
45 J11-1, J7-09 36 SDA1/RG3 Selected by JP6
46 J11-2, J7-11 37 SCL1/RG2 Selected by JP8
