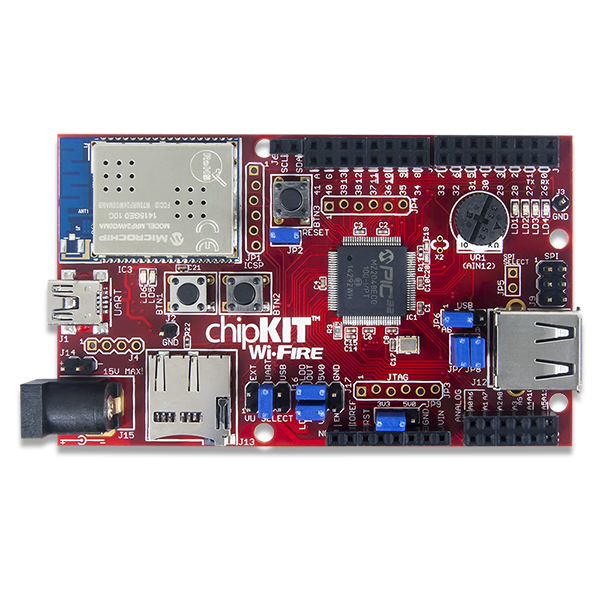

ChipKIT Wi-Fire

chipKIT Wi-FIRE
Specifications
Controller	PIC32MZ2048EFG
Flash	2MB
RAM	512kB
Speed	200MHz
Information
Board Define	_BOARD_WIFIRE_
Links
Designer	Digilent Inc.
Product Page	digilentinc.com
User Guide	chipkit_wi-fire_rm.pdf
Schematic	chipkit-wifire_sch.pdf
Tech Support	chipkit.net/forum
Board Files	Eagle (ZIP)
Bootloader HEX	Bootloader Image (ZIP)
Purchase From	Microchip

The Wi-FIRE, which is designed around Microchip's latest MZ architecture and Imagination Technologies Flow Cloud, enables rapid prototyping using the Arduino IDE. The PIC32MZ family provides 2.5x the performance and 4x the memory over the PIC32MX family. The Wi-FIRE can also be programmed with the chipKIT PGM Programmer/Debugger.

1. The Board Design

   1. Useful Board Pins

      1. LEDs

      2. Buttons

      3. Analog Inputs

      4. Serial Objects

      5. I2C

      6. SPI

   2. Pinout Table

¶The Board Design

• Microchip® PIC32 MZ Processor PIC32MZ2048EFG
• 200MHz operation speed, 2MB of Flash, 512KB RAM
• 43 available I/O pins with on-board user interfaces
• Microchip MRF24WG0MA WiFi module (802.11 b/g)
• USB 2.0 Full-Speed / Hi-Speed OTG controller with A and micro-AB connectors
• 10-bit ADC module: 500 Ksps rate with one Sample and Hold (S&H) circuits, up to 40 analog inputs
• Six 50 MHz 4-wire SPI, six UART modules, five I2C modules, PPS
• Micro SD card connector
• 4 User LEDs, 2 Push Buttons, Poentionmeter
• High efficiency 3.3V switching power supply for low-power operation
• Supported by Imagination Technologies Flow Cloud Software for your IOT projects
• Fully supported by chipKIT-core and Arduino IDE as well as the MPLAB X IDE

¶Useful Board Pins

¶LEDs

¶Buttons

¶Analog Inputs

¶Serial Objects

¶I2C

¶SPI

Note: The SD Card and WiFi Module also use SPI interfaces.

¶Pinout Table

Quick reference: There are four user LEDs (Pin 13, Pin 43, Pin 44, Pin 45). Pins 43-45 do not attach to any connector. There are also 12 analog inputs (Pin 14 - Pin 25, A0 - A11). There are also 43 GPIO pins available.
